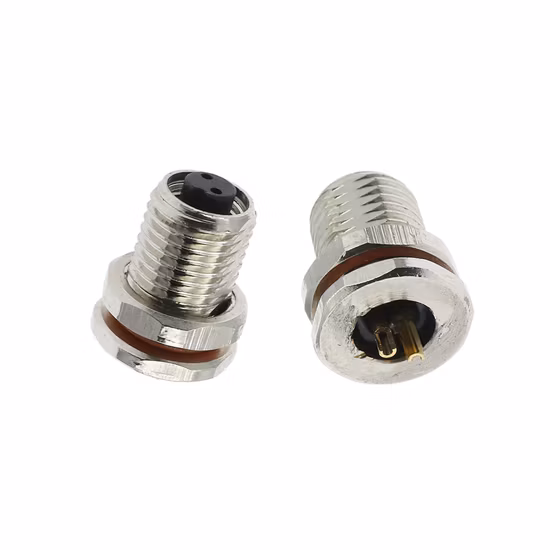

Waterproof Socket 2hole Welding Female M5 Connector

Basic Info

Model NO.	YG-5-2B-QGZ5
Usage	Air transport Screwdriver, Grinding Machinery, Air Compressor, Air Line
Brand	Yueguo
Work Temperature	High Temperature
Material	Brass Nickel Plating
Outline Structure	Circular
Interface Type	Ad,DC
Number of Cores	2
Engage Bayonet	Screw Thread
Shielding Function	Shield
Wiring Mode	Soldered Type
Transport Package	Carton Packaging
Specification	PCS
Trademark	YUEGUO
Origin	Guangzhou
Production Capacity	10000

Packaging & Delivery

Package size per unit product 25.00cm * 21.00cm * 9.00cm Gross weight per unit product 0.500kg

Product Description

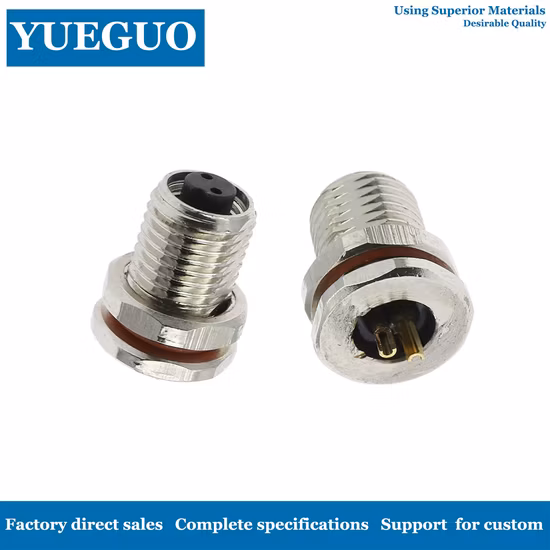

Waterproof Socket 2hole Welding Female M5 Connector

Dimension drawinYG-5-2B-QGZ5
YG(YUEGUO);5(M5);2(5-pin plug);Technical parameter

Pin Number	2
Engagement force	≤30N
Disengagement force	≥5N
Mechanical lifespan	≥500
IP rating	IP67/IP68
Shell protection	UL94 V-0
Flammability	≥1000M Ω
Upper temperature	+105ºC
Lowertemperature	-40ºC
Rated voltage	60V
Pollution degree	3
Overvoltage categorie	II
Materiall group	II
Rated current(40ºC)	1A
Contact resistance	≤10Ω
Pin contact	CuzN(Messing/brass)
Contact plating	Au(Gole/gold)
Male insert	PA66+GF
Housing canle connectoe	SUS304
Parts	Materlals
Contact	Bronze
Outer Contact	Brass
Nut	Brass
O-Ring	Epdm
Mreatment	Amount

InstrumentationDetection equipmentPackaging method

Waterproof Socket 2hole Welding Female M5 Connector

FAQQ1: Are you a manufacturer?A1: We are manufacture, we can provide one-stop station service for connectors and cables with factory price.
Q2: What is the necessary information needed for quotation?
A2:The series(M5/M8/M12),coding,male or female,pin number,cable length.
Q3: What is the minimum order quantity(MOQ)?A3:100 pcs or negotiatable.Q4: Volume order lead time?
A4: 3-4 weeks.
Q5: After-sales service
A5: All the inquiry will be response within 24 hours, the commucation will be effective.
