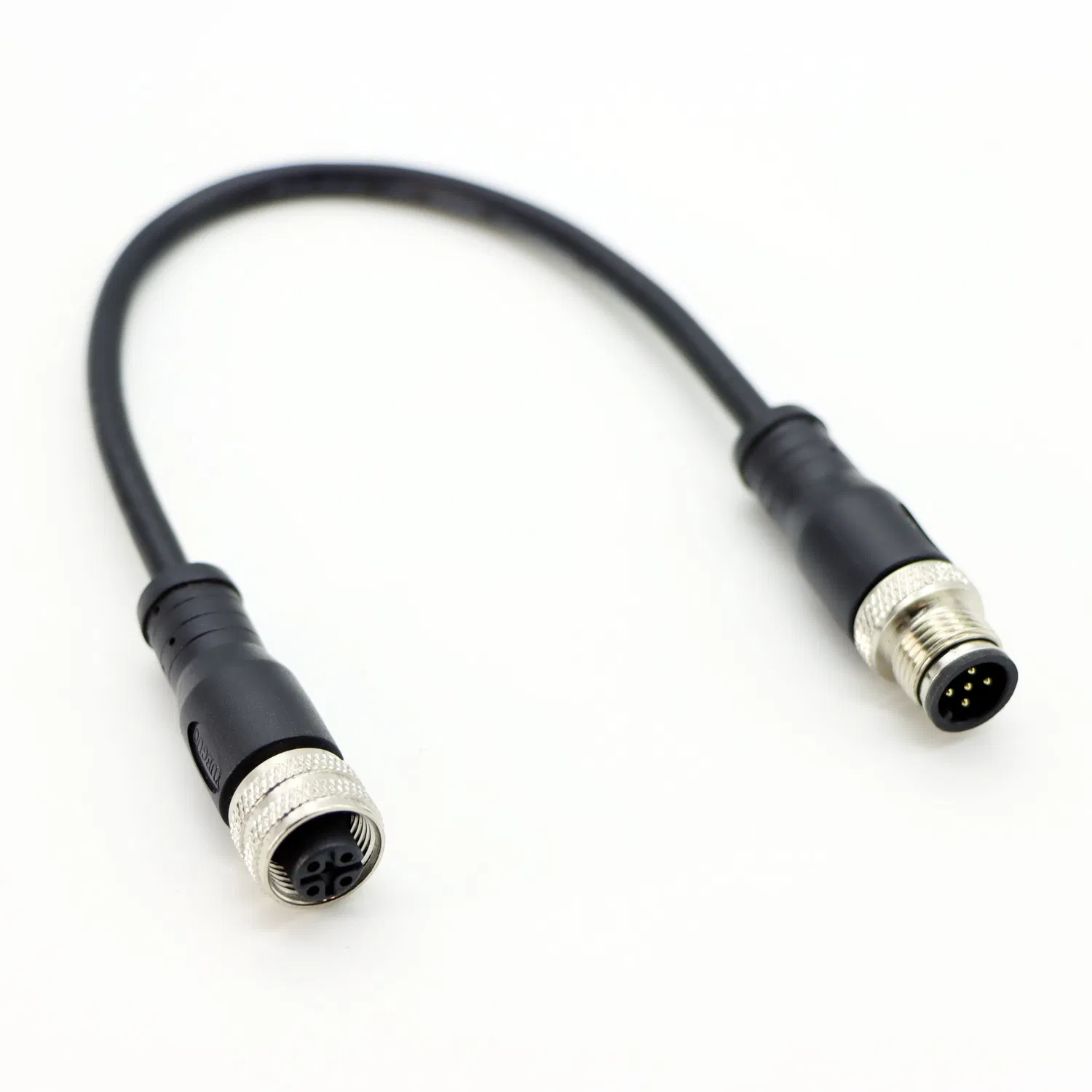

Signal Transmission Connector M12 4-Core Waterproof Aviation Plug M12 Double Head Cable

Signal Transmission Connector M12 4-Core Waterproof Aviation Plug M12 Double Head Cable

Package size per unit product 46.00cm * 32.00cm * 32.00cm Gross weight per unit product 0.500kg Dimension drawin Technic
SHARE

Description

Basic Info
Model NO. YG-12-5B-I-5B-2M-PVC
Certification RoHS, CE
Application UHF, Automobile
Contact Resistance 3.8mΩ
Contact Material Brass
Surface Treatment Nickel Plating
Housing Brass Nickel Plating
Colour Black or Orange
Connector Series M12 Connector
Pin 4/5/8pin
Line Length Any(mm)
Material PVC/PUR/Rubber/Nylon
Transport Package Carton Packing
Specification PCS
Trademark YUEGUO
Origin Guangzhou
Production Capacity 5000
Packaging & Delivery
Package size per unit product 46.00cm * 32.00cm * 32.00cm Gross weight per unit product 0.500kg
Product Description

Signal Transmission Connector M12 4-Core Waterproof Aviation Plug M12 Double Head Cable

Signal Transmission Connector M12 4-Core Waterproof Aviation Plug M12 Double Head Cable

Dimension drawin

Technical parameter

Pin Number458
Connector Locking s/stemscrew
Teminationsoldermoulded-on cable
Wire gauge in mm²Max.0.34mm²(WAG22) Max.0.25mm²(WAG24)
Cable outlet(mm)3.5-8mm
Shell protectionIP65/IP67
Mechanical operation>100 Steckzyklen/>100 Steckzyklen
Upper temperature+85ºC
Lowertemperature-25ºC
Rated voltage250V60V30V
Rated imoulse voitage2500V1500V800V
Pollution degree3
Overvoltage categorieII
Materiall groupII
Rated current(40ºC) 4A2A
Contact resistance≤3Ω
Pin contactCuzN(Messing/brass)
Contact platingAu(Gole/gold)
Male insertPBT/PA(UL94HB)
Housing canle connectoePUR/PVC

Company Profile Instrumentation

Signal Transmission Connector M12 4-Core Waterproof Aviation Plug M12 Double Head Cable

Signal Transmission Connector M12 4-Core Waterproof Aviation Plug M12 Double Head Cable

Signal Transmission Connector M12 4-Core Waterproof Aviation Plug M12 Double Head Cable

Packaging method

FAQQ1: Are you a manufacturer?A1: We are manufacture, we can provide one-stop station service for connectors and cables with factory price.
Q2: What is the necessary information needed for quotation?
A2:The series(M5/M8/M12),coding,male or female,pin number,cable length.
Q3: What is the minimum order quantity(MOQ)?A3:100 pcs or negotiatable.Q4: Volume order lead time?
A4: 3-4 weeks.
Q5: After-sales service
A5: All the inquiry will be response within 24 hours, the commucation will be effective.
