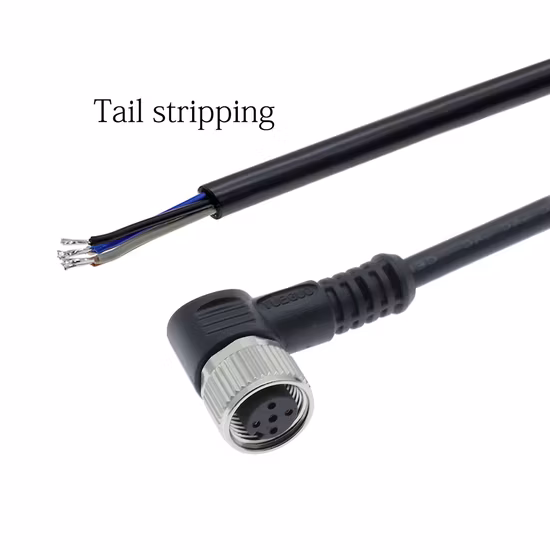

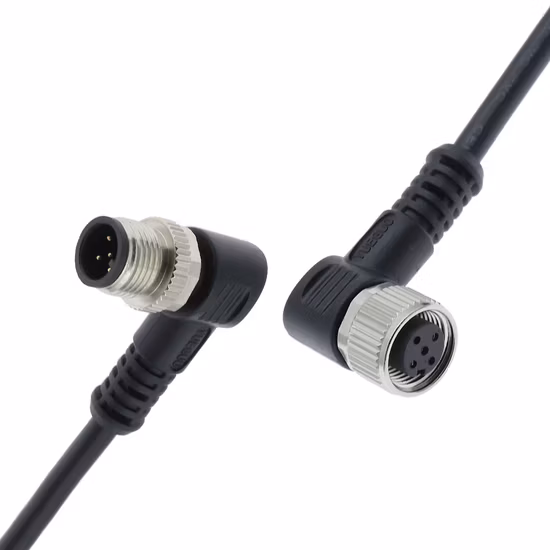

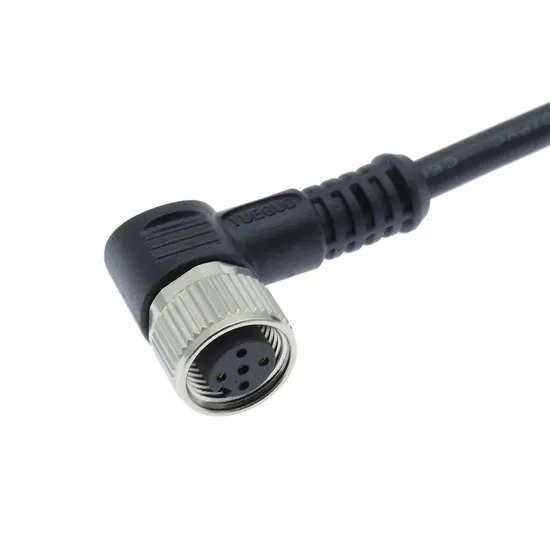

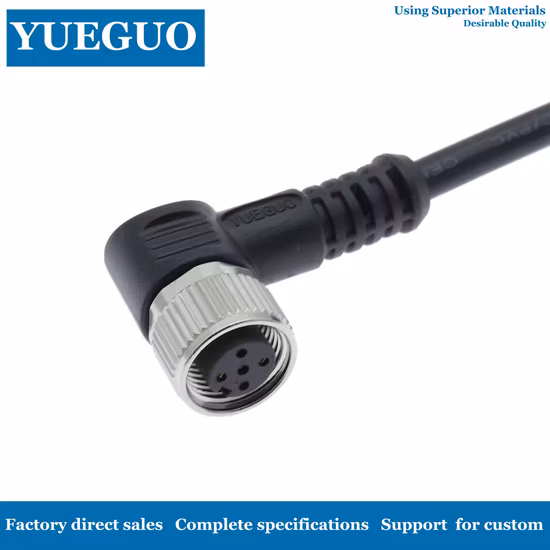

5-Core Black 90 Degree Elbow Round Waterproof M12 Connector

Basic Info

Model NO.	YG-12-L-5B-1M-PVC
Certification	RoHS, CE
Application	UHF, Automobile
Contact Resistance	3.8mΩ
Contact Material	Brass
Surface Treatment	Nickel Plating
Housing	Brass Nickel Plating
Colour	Black,Orange
Connector Series	M12 Connector
Pin	4,5,8
Line Length	Any(mm)
Material	PVC,PUR,Rubber,Nylon
Transport Package	Carton Packing
Specification	PCS
Trademark	YUEGUO
Origin	Guangzhou
Production Capacity	5000

Packaging & Delivery

Package size per unit product 46.00cm * 32.00cm * 32.00cm Gross weight per unit product 0.500kg

Product Description

5-Core Black 90 Degree Elbow Round Waterproof M12 Connector

Dimension drawin

Technical parameter

Pin Number	4	5	8
Connector Locking s/stem	screw
Temination	soldermoulded-on cable
Wire gauge in mm²	Max.0.34mm²(WAG22) Max.0.25mm²(WAG24)
Cable outlet(mm)	3.5-8mm
Shell protection	IP65/IP67
Mechanical operation	>100 Steckzyklen/>100 Steckzyklen
Upper temperature	+85ºC
Lowertemperature	-25ºC
Rated voltage	250V	60V	30V
Rated imoulse voitage	2500V	1500V	800V
Pollution degree	3
Overvoltage categorie	II
Materiall group	II
Rated current(40ºC)		4A	2A
Contact resistance	≤3Ω
Pin contact	CuzN(Messing/brass)
Contact plating	Au(Gole/gold)
Male insert	PBT/PA(UL94HB)
Housing canle connectoe	PUR/PVC

Company ProfileInstrumentation

5-Core Black 90 Degree Elbow Round Waterproof M12 Connector

Packaging method

FAQQ1: Are you a manufacturer?A1: We are manufacture, we can provide one-stop station service for connectors and cables with factory price.
Q2: What is the necessary information needed for quotation?
A2:The series(M5/M8/M12),coding,male or female,pin number,cable length.
Q3: What is the minimum order quantity(MOQ)?A3:100 pcs or negotiatable.Q4: Volume order lead time?
A4: 3-4 weeks.
Q5: After-sales service
A5: All the inquiry will be response within 24 hours, the commucation will be effective.
