Automotive Fakra Male Plug Crimp Rubber Waterproof RF Coaxial Connector for Rg174 Cable
Package size per unit product 19.00cm * 9.00cm * 6.00cm Gross weight per unit product 0.100kg FAKRA CONNECTOR Fakra conn
Description
Basic Info
| Model NO. | FK-C-J1.5K1-X |
| Classification | Male Connector |
| Interface Type | SMB |
| Shape | Straight |
| VSWR | Max [email protected] |
| Brand | Four Star |
| Frequency Range | DC-3GHz |
| Characteristic Impedance | 50 Ohm |
| Durability | Mating Cycles>500 |
| Plating | Ni |
| Housing | PA66 |
| Product Name | Fakra Male(Plug) Crimp Connector for Rg174 Cable |
| Transport Package | Carton |
| Specification | Inner Conductor |
| Origin | Zhenjiang City, Jiangsu Province, China |
| HS Code | 8536909000 |
| Production Capacity | 150000pieces/Year |
Packaging & Delivery
Package size per unit product 19.00cm * 9.00cm * 6.00cm Gross weight per unit product 0.100kgProduct Description
FAKRA CONNECTORFakra connectors have been especially designed to fulfill the tough requirements of the automotive industry.
A comprehensive coding system offers 11 mechanical and colored coding and one neutral coding (Z = water blue) for modern automotive applications, e.g. GPS, keyless entry.
Cable connectors for RG 58, RG 174, RG 178, RG316, and RTK 031
FAKRA SF Connector (SF = Stamped and Formed) provide many essential benefits to the customer:
1. Primary and secondary locking systems lead to high assembling security;
2. Stamped & Formed Technology: Parts of highest precision due to high reliability in manufacturing process;
3. Suitable for fully automated assembly by harness makers.

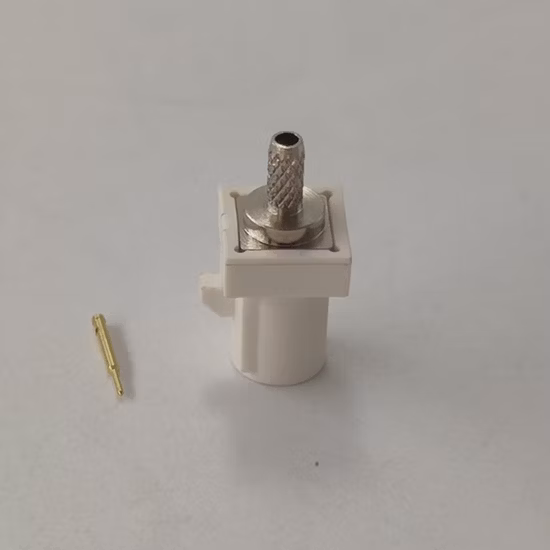

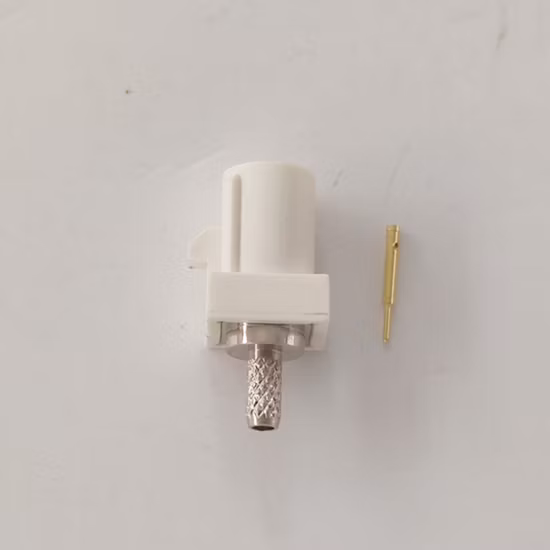

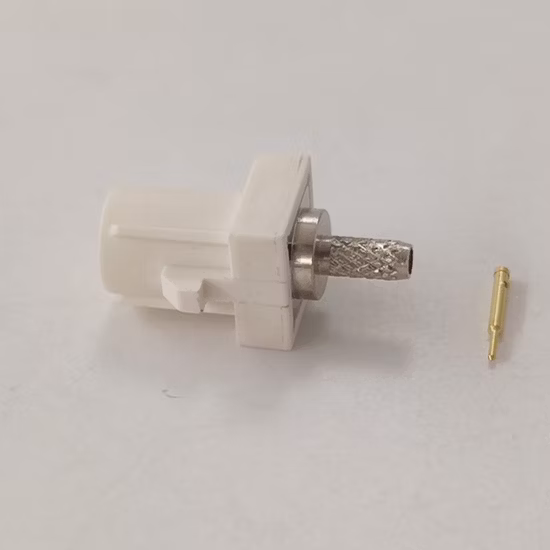

FAKRA Male(Plug) Crimp rf coaxial Connector For RG174 Cable
Pictures Show:
Company Information:
Founded in 1994, Four Star Communication Parts is located in No.88 S338 Road Zhenjiang City, Jiangsu Province China (230Km away from Shanghai).
Four Star Communication is one of the excellent manufacturer dedicating to design and make RF coaxial connectors, RF cable assembly, Microwave components.
Our products range:
RF coaxial connectors Series : SMA ,SMB,SMC, BNC,TNC, N,7/16 DIN , 1.0/2.3,1.6/5.6 ,SMZ (BT43) ,QMA ,FME,F,UHF,MCX,MMCX,EIA Flange, 4.3/10 etc.
RF coaxial Cable assembly(Jumper Cable)
Micro-wave Components : Dummy Load(Terminator), Attenuator, Surge Arrestor(Surge Protector), Power Splitter (Divider), Directional Coupler.
